Our Products

The Corematic equipment namely:
  • Automatic (Senior) Core Saw 380 Volt Model
  • Manual (Junior) Core Saw 220 or 380 Volt Models
  • Settling Tanks 220 or 380 Volt Models

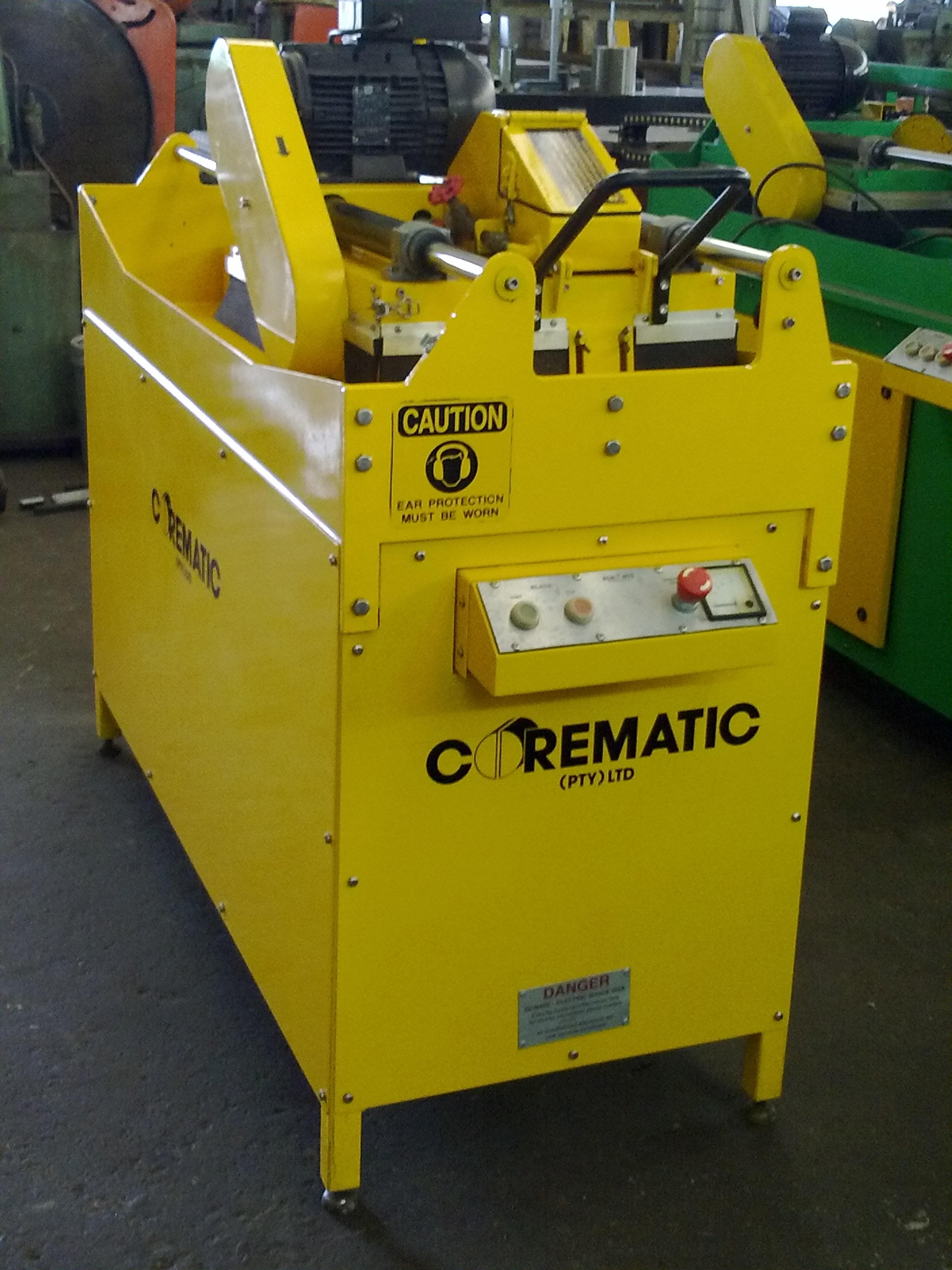

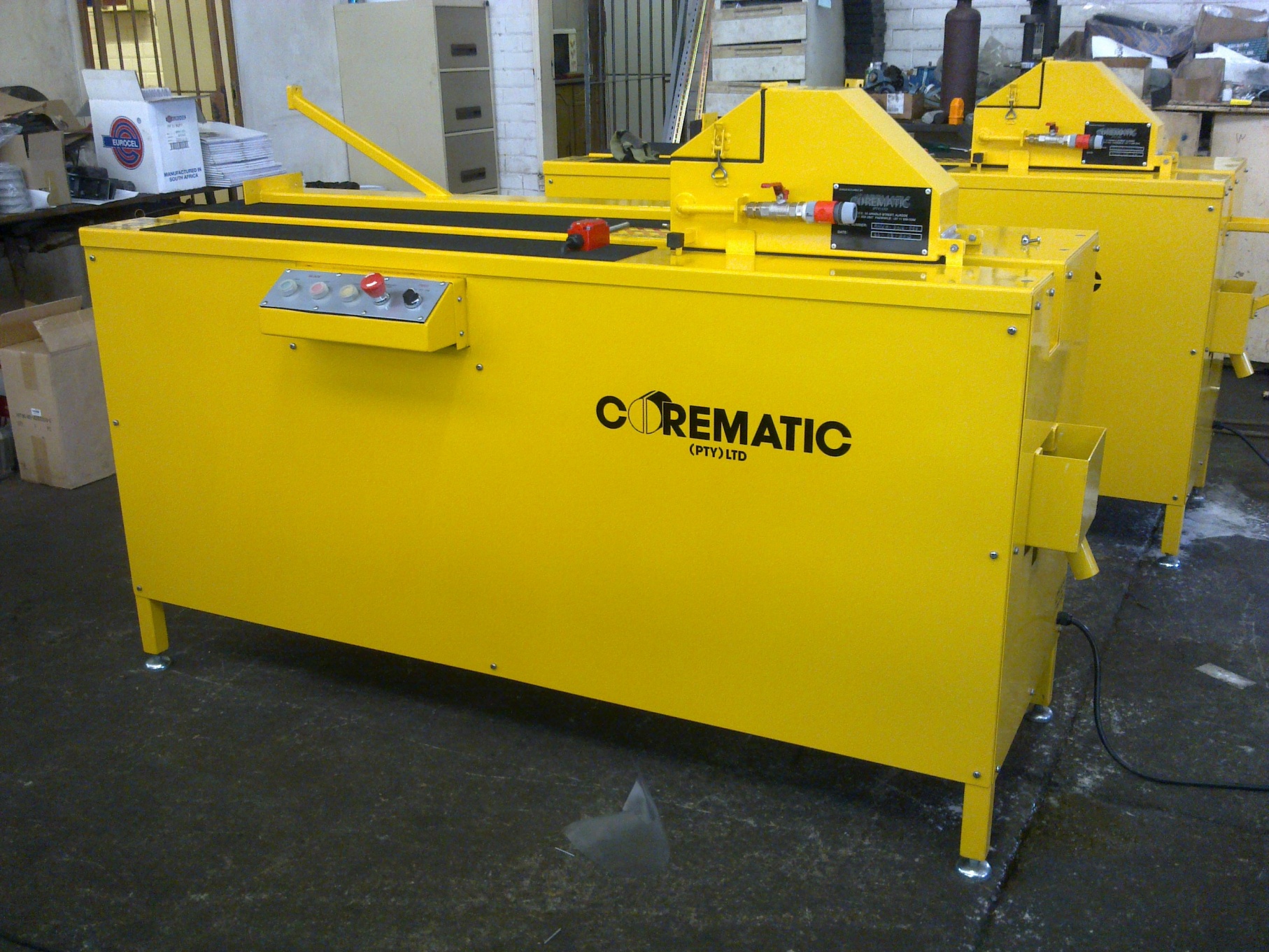

Corematic Automatic Core SawCorematic Junior Core Saw
These are built from heavy duty steel and where
applicable 3CR12 (A Stainless Steel Type Material) known in the industry as a hard wearing non rust material is used. The parts are then powder coated to give the end user confidence that in the harshest of conditions the machine will never rust away.

The machines are designed and built with maximum safety for the operators in mind at all times. Blade Covers are lined with Sound Dampening Rubber significantly keeping Decibel levels as low as possible.

The Automatic Core Saw is set at a feed rate of two meters per minute, however the machine thinks for itself slowing down depending on the hardness of the core. This is to ensure an optimal blade speed of 2500 RPM is maintained. Feed operation will only occur once the blade is at speed. The Junior Core Saw is a Manual Feed. A feed rate of approximately half a meter per minute can be obtained depending on the hardness of the core being cut. The operator keeps an eye on an amp meter fitted to the control panel and makes sure he remains within the limits marked on the amp meter.

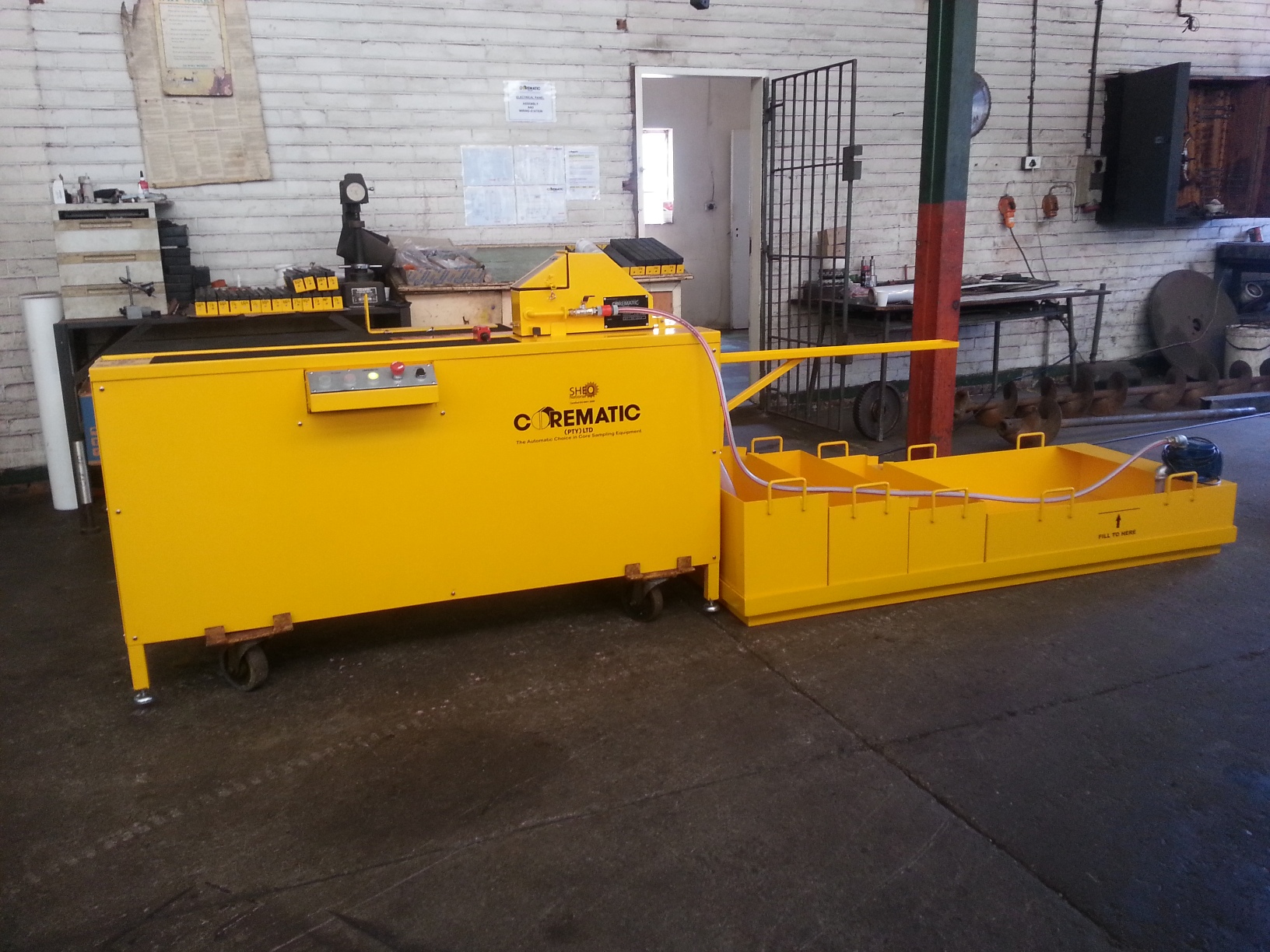

  • Automatic Core Saw With Settling TankBlade shaft assembly shafts are manufactured from En19 condition “X” material giving the shafts a tensile strength of 65 Tons per square inch. They are machined and final ground between centers to bearing tolerances & concentricity of less than 0.001mm.
  • Only Premium Efficiency Plus, Cast Iron frame, IP66 SABS approved (ISO9001:2008) Weg Motors are used with a 5 year warranty.
  • Only Allen Bradley Adjustable Frequency AC Drives and Switchgear are used with a 2 year warranty.
  • All electrical components are CE Compliant.
  • Latest Arix Technology Diamond Blades have been designed and perfected to cut from the softest to the hardest of Core i.e. Banded Iron Formations
All new Corematic Core Saws carry the following guarantees:
  • Five years on Frames, Covers and Side Panels.
  • Five years on Motors.
  • Two years on Drives.
  • One Year on Wear Parts i.e Chain and Wear Strips.

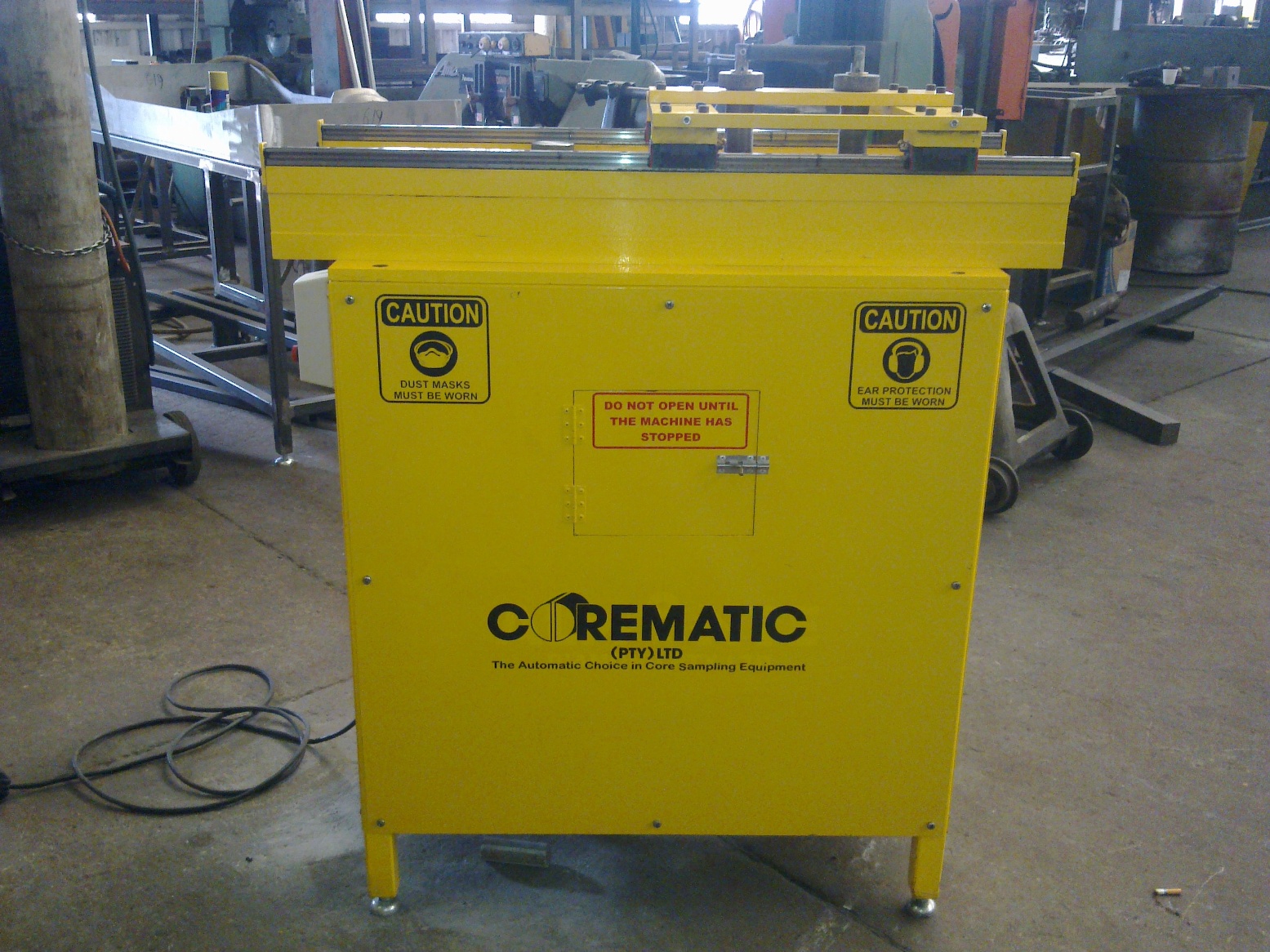

The Corematic Core Grinder
Core Lift


Other innovative products that have been designed and
manufactured include
The Corematic Core Grinder
and our latest development which was completed in 2014

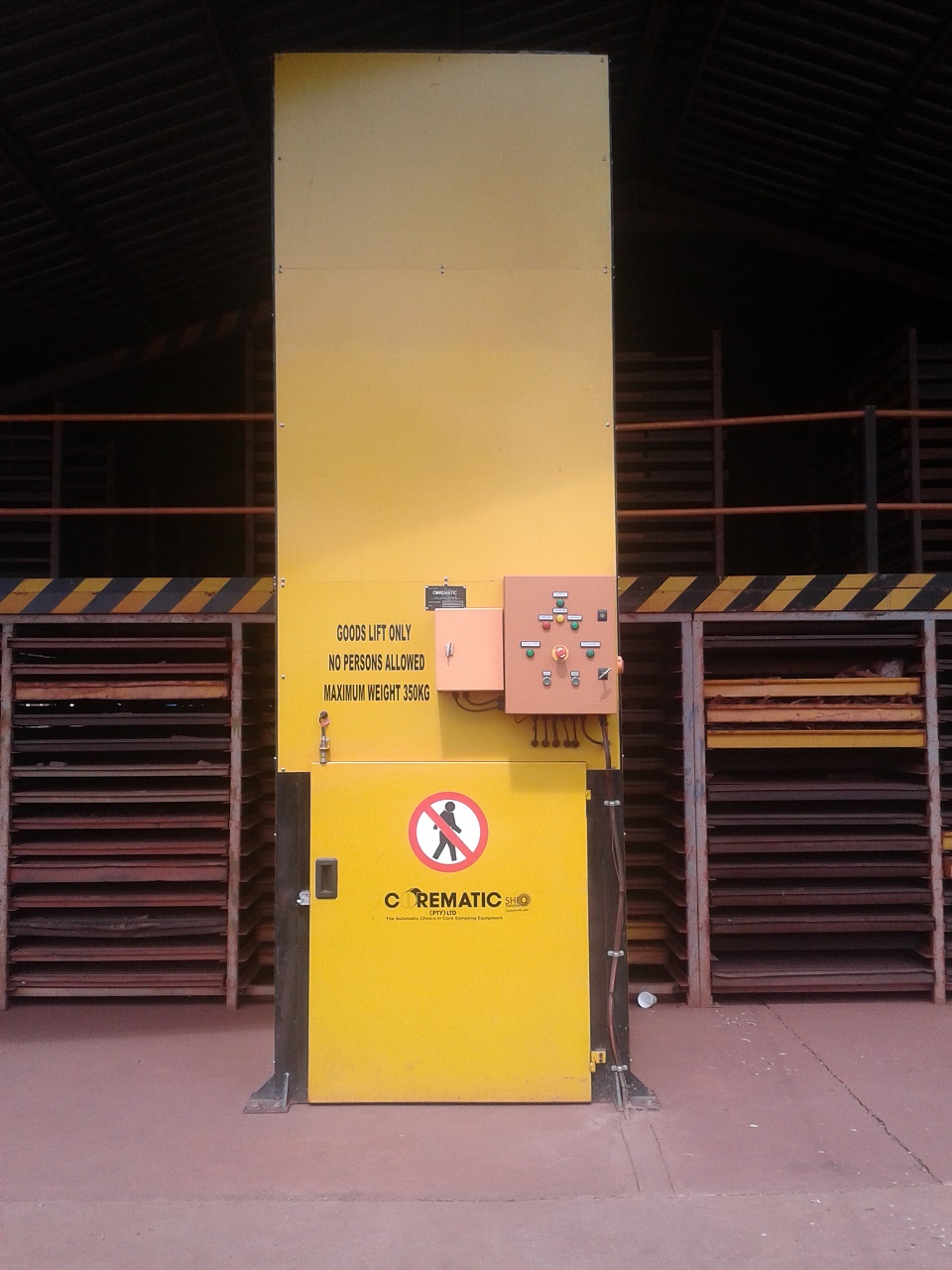

The Corematic Core Lift
The Corematic Core Lift was designed and built to SANAS 1545-2:2007. The lift is an electric access goods only lift and was designed to carry 350kg's of core.






Various Geological Equipment is available on request and subject to quotation
Corematic (PTY) LTD also source and supply a number of different consumables and equipment that the geological departments may require. Items such as plastic sampling bags, plastic sampling jars, steel and plastic drums, steel core trays, point load testers and density scales are a few examples of these products.

Consumables
Core Guides

The Corematic Consumables namely:

Corematic Core Trays
  • BQ Core Tray
  • TNW / HQ Core Tray
  • TBW / NQ Core Tray
  • NXCU Core Tray

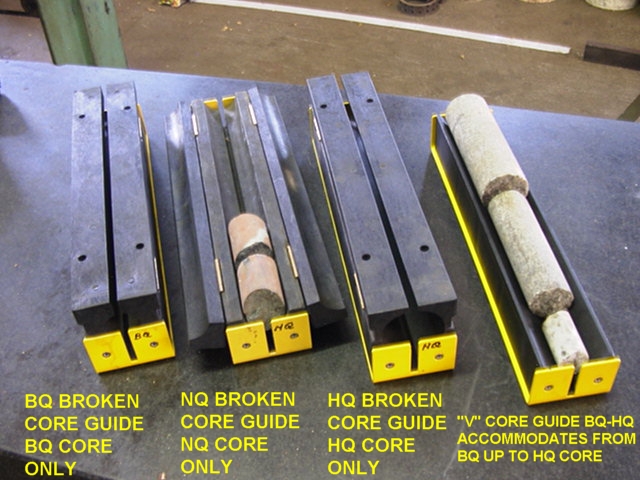

Corematic Core Guides

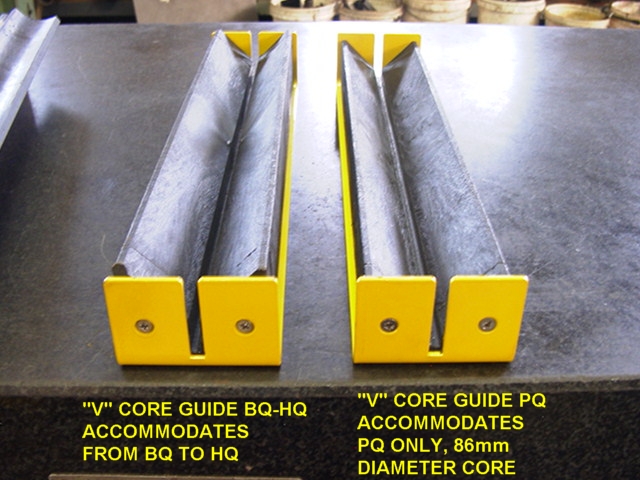

  • "V" Core Guides (BQ to HQ / PQ)
  • Broken Core Guides (BQ / NQ / NQ2 / TNW / HQ)
  • Quarter Core Guides (BQ / NQ / NQ2 / TNW / HQ) For quartering core.
(Click Here To View Our Core Guide Data Sheet)

Core Guides

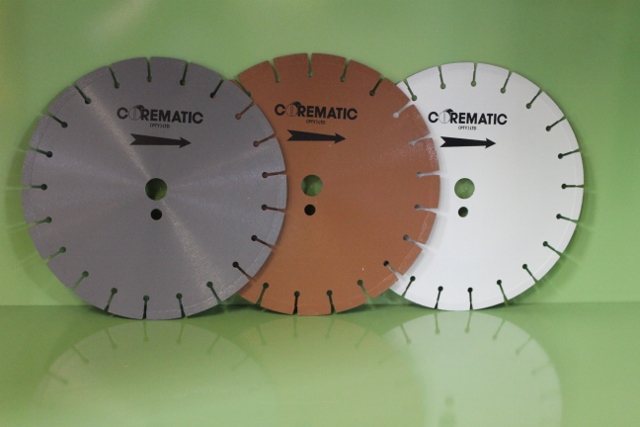

Corematic Diamond Blades
  • Standard (Grey) Used with both our Corematic Auto Core Saw & Junior Core Saw.
    • Soft to Medium Hard Material, Excellent Life.
  • ABI (Brown) Used with The Corematic Auto Core Saw.
    • Extremely Hard Core, Banded Iron, Magnetite.
  • JBI (Ivory) Used with The Corematic Junior Core Saw.
    • Extremely Hard Core, Banded Iron, Magnetite.
Blades





After extensive field tests Corematic diamond blades have been engineered to offer the best possible speed of cut and life on all Automatic and Manual core cutting machines.

We believe in the quality of our products and making use of the latest Arix Technology, we now have three Grades of Diamond Blades, which have been designed, perfected and  have given outstanding results, splitting the softest to the most extreme hardest of core.

(Click Here To View Our Blade Leaflet)



Servicing Of Core Saws

A yearly service is recommended for Automatic Core Saws to ensure safe & trouble free operation of equipment.
A loan machine is offered to clients in South Africa whilst the service is carried out at our
premises.


Training And Delivery

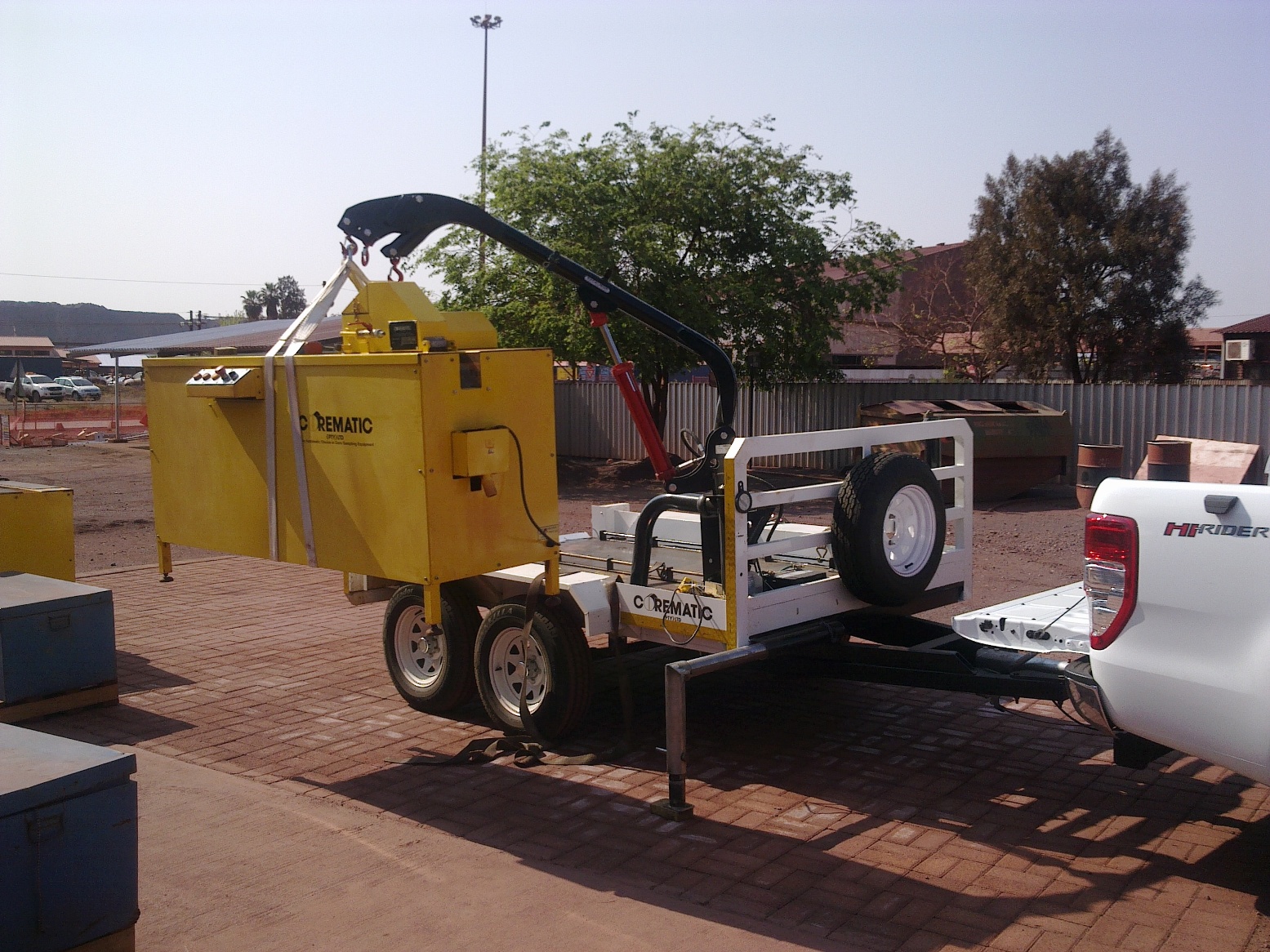

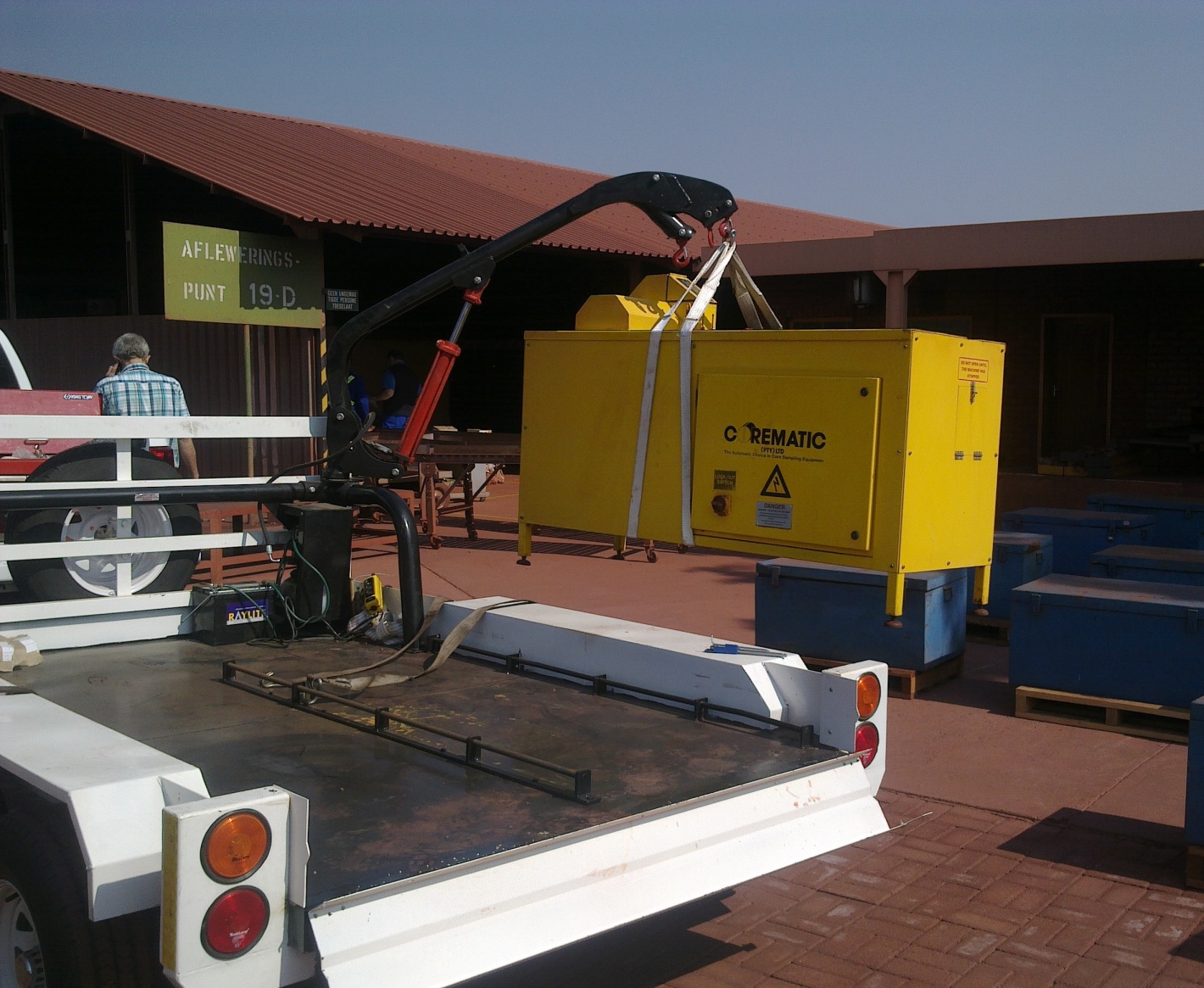

Corematic offers delivery, installation, commissioning and training of core cutting personal with certificates to ensure safe operation of equipment.

Delivery and commissioning of machines is offered anywhere in South Africa at reasonable rates, pricing is dependent on location.
